WRISTNAV

Complete Navigation & Settings Reference
Home
Record
Nav Toggle
GPS Status
Horizontal Gestures
Swipe left for Quick Settings. Swipe left, twice, for Reverse Route. Swipe right for Home Map.
Vertical Pager
Stats → Maps → Tracks → Settings → Exit
Source Notes
Home is a 3-page horizontal pager. Maps and Tracks can be hidden by settings.
Home Controls
Primary actions and status on the main watch face
›
Record
Start / Stop / Pause
Nav Toggle
Off / On — turning on opens track list
GPS Status
Signal indicator
Battery
% display
Clock
Current time
Home Swipe Pages
The left and right pages inside the Home pager
›

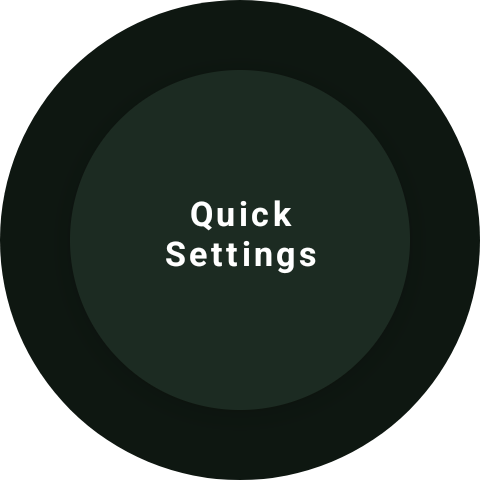

Quick Settings Launcher
Swipe left from Home, then tap to open Quick Settings

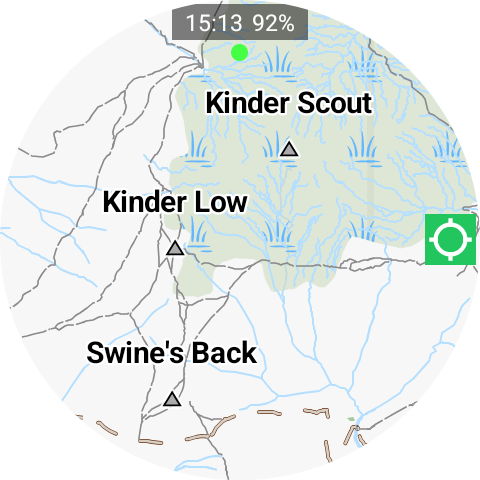

Home Map
Swipe right from Home to open the live map page
Reverse Route
Swipe left, twice, from Home, then tap to reverse route, Nav must be ON
Quick Settings
Launcher page opened from the left swipe
›
Activity
10 types
Watch Theme
Units
km / mi
Small Units
m / ft
Map Control
Off / Compass / Zoom
Nav Distance
On / Off
Nav Turns
On / Off
Auto Pause
Off / 2s / 5s / 10s
Stats
Swipeable stat pages
›
Stats Pages
Main data screens accessed by vertical paging
Maps
Download manager and map region maintenance
›

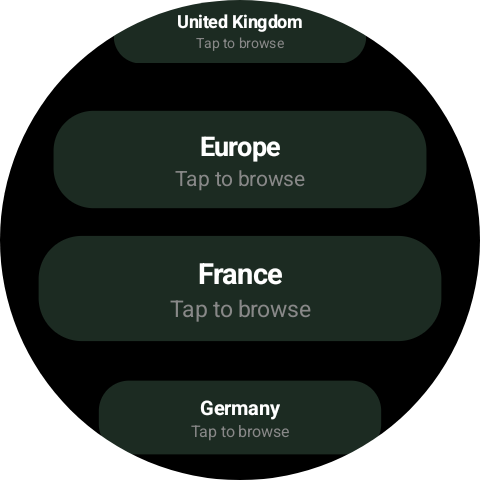

Main Map
Fetch offline map regions from the built-in country/region list
Hillshading
Downloads a relief-shading overlay (.hgt tiles, zipped) per region — layers under the base map for terrain shading
Contours
Downloads a contour-line map variant per region, from the same country/region list
Installed
Lists every downloaded map, TOPO region, and hillshading set with size — tap to delete
URL Download
Triggered from the companion app — watch downloads a direct .map link or a zip (auto-extracted) in the background
Tracks
GPX list and track inspection flow
›
Download GPX
OSM trace ID download from the watch

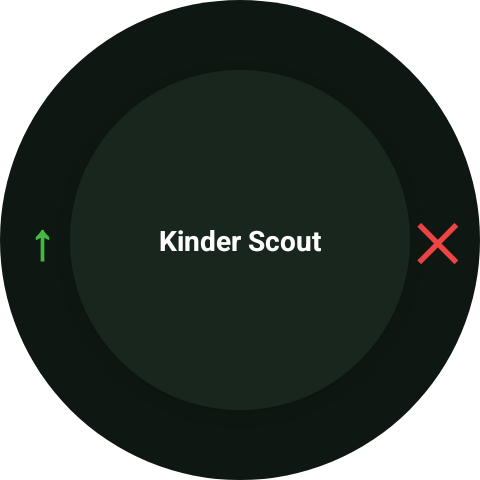

GPX List
Browse imported, downloaded, and recorded tracks

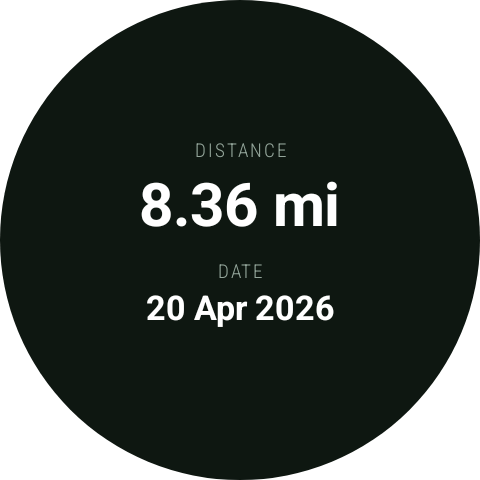

Track Detail
Opens when a track is tapped
Send to Phone
Export a GPX track to the companion app
External GPX Import
Tracks can also arrive from the companion app or file share intents
Settings
All settings categories, grouped into collapsible sections
›
Display
Theme and text presentation
›
Watch Theme
Light / Fjord / Dark / Forest / Sand
Stats Text Size
S / M / L
Map
Theme, zoom, and drill-down map controls
›
Map Style
Mapsforge / TOPO — switches the whole map rendering mode
Map Theme
Light / Fjord / Dark / Min×3 / Custom
Custom Themes
Opens CustomThemeActivity — themes can be built in-app or imported as an XML file from the companion app
Topo Zoom
1× / 1.5× / 2× — replaces Map Theme/Custom Themes in the list when Map Style is TOPO
Map Settings
Opens MapSettingsActivity
Lock Zoom
15 / 16 / 17 / 18
Ele Colour
Red / Blue / Green / Cyan / Orange / Purple / White
Map Settings
Detailed overlay and control options
›
Map Control
Off / Compass / Zoom
Control Side
Left / Right
Top Bar
On / 5s / 10s / Off
Map Text Colour
7 colours
Location Button
Lock colour / Free colour
Scale Bar
On / Off
Bezel Stats
On / Off → 3 slots picker
Import Colour
Red / Green / Yellow / Blue
Import Width
Track line width
Recording
Recording behaviour, sensors, and lap logic
›
Activity
Run / Trail / Walk / Hike / Cycle / MTB / Gravel / Kayak / Ski / Snowboard
Rec Distance
Min GPS point distance
Rec Time
Min GPS point interval
Auto Pause
Off / 2s / 5s / 10s
Pause Speed
Speed threshold
Record Colour
Red / Green / Yellow / Blue
Record Width
Track line width
Heart Rate
On / Off
Steps
On / Off
Countdown
Off / 3s / 5s
Lap Splits
On / Off
GPS Filtering
On / Off
Navigation
What shows on screen during active navigation
›
Nav Distance
On / Off
Nav Elevation
On / Off
Nav Turns
On / Off
Nav Arrows
On / Off
Off-Route Alert
On / Off — haptic vibration, fires even with the screen off
Alert Distance
20m / 30m / 40m / 50m
Stats Settings
Config activities, barometer, and pace
›
Stats Pages
Opens StatsConfigActivity
Calories
Opens CaloriesActivity
Barometer
On / Off
Pace Avg
Averaging window
System
Units and power behaviour
›
Distance
km / mi
Small Units
Metres / Feet
Keep Screen On
On / Off
Keep Active
Background service on / off
Battery Saver
Dark theme, minimal map, disables HR/Steps/Nav overlays/Bezel. Restores all on disable.
Auto Actions
Flows triggered outside the main pager
›
Workout Summary
Stats · Map · Save prompt
Exit
Close app
›
Exit
Close app
Home / Settings
Map
Stats / Recording
Quick Settings
Tracks / GPX
Navigation
Sub-screen
